Heavy Machinery & Shipbuilding
Large booth coating and high-airflow paint shops.
Processes and emission sources
Zeolite concentration to shrink oxidizer size, or direct RTO where concentration supports autothermal operation.

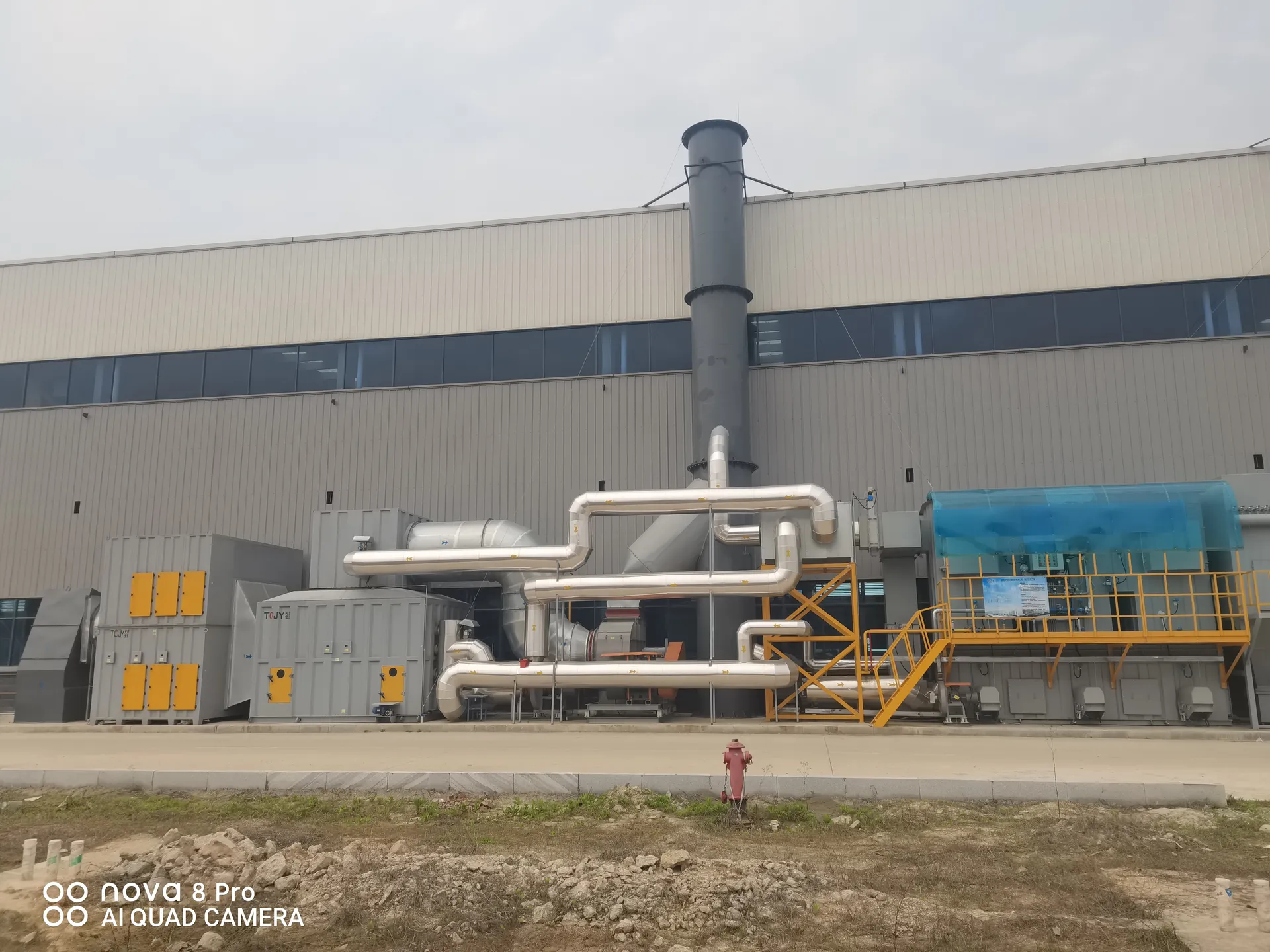

Real engineering project deployed by FluxFine Environmental.
Common pollutants
- Paint solvents
- Overspray
- Aromatic VOCs
- Particulate
- Intermittent odors
Typical conditions
- Very large airflow
- Intermittent booths
- Widely distributed sources
- Outdoor duct routes
Engineering priorities
- Duct pressure loss
- Intermittent operation
- Outdoor corrosion protection
- Large equipment logistics
- Energy consumption
From collection to compliant discharge
- 01
Booth capture
- 02
Overspray filtration
- 03
Airflow balancing
- 04
Concentration or direct RTO
- 05
Heat recovery
How we turn heavy machinery & shipbuilding exhaust data into a treatment train
The recommended configuration is built around the actual production process, not a generic industry label. This is especially important when one site has multiple exhaust headers, recipes or operating modes.
Common treatment challenges
- Very large airflow (often 100,000+ m³/h class)
- Intermittent booth operation
- Energy cost pressure
Data we request
- Exhaust source, airflow and operating schedule
- VOC/pollutant analysis, concentration range and LEL information
- Temperature, humidity, dust, mist and corrosive components
- Existing collection or pretreatment equipment
- Emission target, layout, utilities and shutdown constraints
Engineering decisions
- Whether streams should be segregated, balanced or treated together
- Which pretreatment protects downstream equipment
- Whether concentration, direct oxidation, recovery or polishing is appropriate
- Materials, safety interlocks, monitoring and maintenance access
- Where recovered heat or utilities can be integrated
Recommended path for heavy machinery & shipbuilding exhaust
This is a decision framework based on the supplied product and project material. The final train changes with measured chemistry, operating patterns and site constraints.
Common emission sources
- Large spray booths and blast/paint rooms
- Shipyard/heavy-equipment coating
- Drying and curing ovens
- Surface-preparation particulate sources
Booth capture → mist filtration → zeolite concentration + RTO or direct RTO
Very large, intermittent coating airflow needs careful collection and diversity analysis. Concentration can reduce downstream oxidizer size for dilute airflow; direct RTO is assessed where load supports it.
- 01Map distributed booth/oven sources
- 02Set capture and pressure-balance strategy
- 03Remove overspray and particulate
- 04Evaluate concentration versus direct RTO
- 05Provide expansion, access and shutdown planning
Rotary RTO configuration
Consider where a compact continuous regenerative layout aligns with the site footprint, maintenance plan and gas-distribution needs.
Process-specific questions
Why are large coating shops difficult to treat?
Airflow can be very high while VOC concentration changes by booth and shift. Duct balance, mist protection, energy use and maintenance access all materially affect the final system.
Can blasting dust share the VOC system?
Usually it needs separate or carefully conditioned treatment. Dry particulate should not be allowed to foul adsorption media or regenerative/catalytic equipment.
Documented heavy machinery & shipbuilding applications
Published records show the documented process context and treatment configuration. Airflow and concentration values, where shown, are project data rather than product guarantees.
127,000 m³/h Zeolite Rotor Concentrator & Three-Bed RTO for Heavy Protective Coatings & Aerosols
Alkali Counter-Flow Wet Scrubber + 4-Stage Dry Filtration Box + 100,000 m³/h Zeolite Rotor + 35,000 m³/h Three-Bed RTO
450,000 m³/h Dual Zeolite Rotor & 3-Bed RTO System for JMA Aluminum Fluorocarbon Coating Lines
Dual-Train Zeolite Rotor (2×220k m³/h) + 3-Bed RTO (55k m³/h) + Dual Jet Scrubbers + 4-Stage Dry Filtration
504,000 m³/h Stratified Displacement Ventilation & Automated ESP Purification for COSCO SHIPPING Heavy Industry
Stratified Displacement Ventilation ("Air Lake") + 28-Unit Automated ESP Array + Automated CIP Clarifier
High-Efficiency VOC Abatement for Shipbuilding Paint Facilities
Multi-stage Dry Filtration + Cylindrical Zeolite Concentrator + Catalytic Oxidation (CO)
Large-Airflow Shipyard Coating RTO
Three-bed RTO
Configurations commonly evaluated
These configurations are starting points for this industry. Final selection depends on measured airflow, pollutant chemistry, concentration, temperature and production schedule.
Three-Tower RTO
A premier-grade industrial VOC thermal abatement system that achieves >=99% VOC destruction efficiency and >=95% thermal energy recovery through a classic three-bed alternating heat-exchange and purge process.
View equipmentRotary RTO
A next-generation RTO system utilizing a continuously rotating gas distributor instead of switching valves, providing stable thermal destruction of VOCs with >= 99% purification efficiency, >= 95% thermal recovery, and zero pressure spikes.
View equipmentZeolite Rotor
A high-efficiency VOC pre-treatment and concentration system utilizing advanced hydrophobic zeolite molecular sieves to continuously adsorb, desorb, and enrich large-airflow, low-concentration organic exhaust gases, reducing downstream thermal destruction energy consumption by 40% to over 50%.
View equipmentRotor + 3-Tower RTO
The premier system for large-airflow, low-concentration VOC emissions, combining a hydrophobic zeolite rotor for 10-40x gas enrichment with a mature three-tower RTO for complete destructive oxidation, cutting energy costs by 40%-60%.
View equipmentRotor + Rotary RTO
The ultimate high-end VOC abatement configuration, marrying a hydrophobic zeolite rotor for 10-40x gas concentration with a valveless Rotary RTO for continuous, pulse-free, and highly energy-efficient thermal destruction (efficiency >= 99.8%).
View equipmentElectrostatic Fume Purifier
A dry or low-water electrostatic collection unit for industrial oil fume and fine process aerosol.
View equipmentMap your heavy machinery & shipbuilding process
Share exhaust sources, airflow, concentration, operating temperature and schedule. We will identify pretreatment needs and a suitable control train.
