New Materials & New Energy
Battery materials, functional films, composites and advanced material production.
Processes and emission sources
Modular collection, concentration and oxidation trains are configured from measured process data with capacity and controls reserved for expansion.

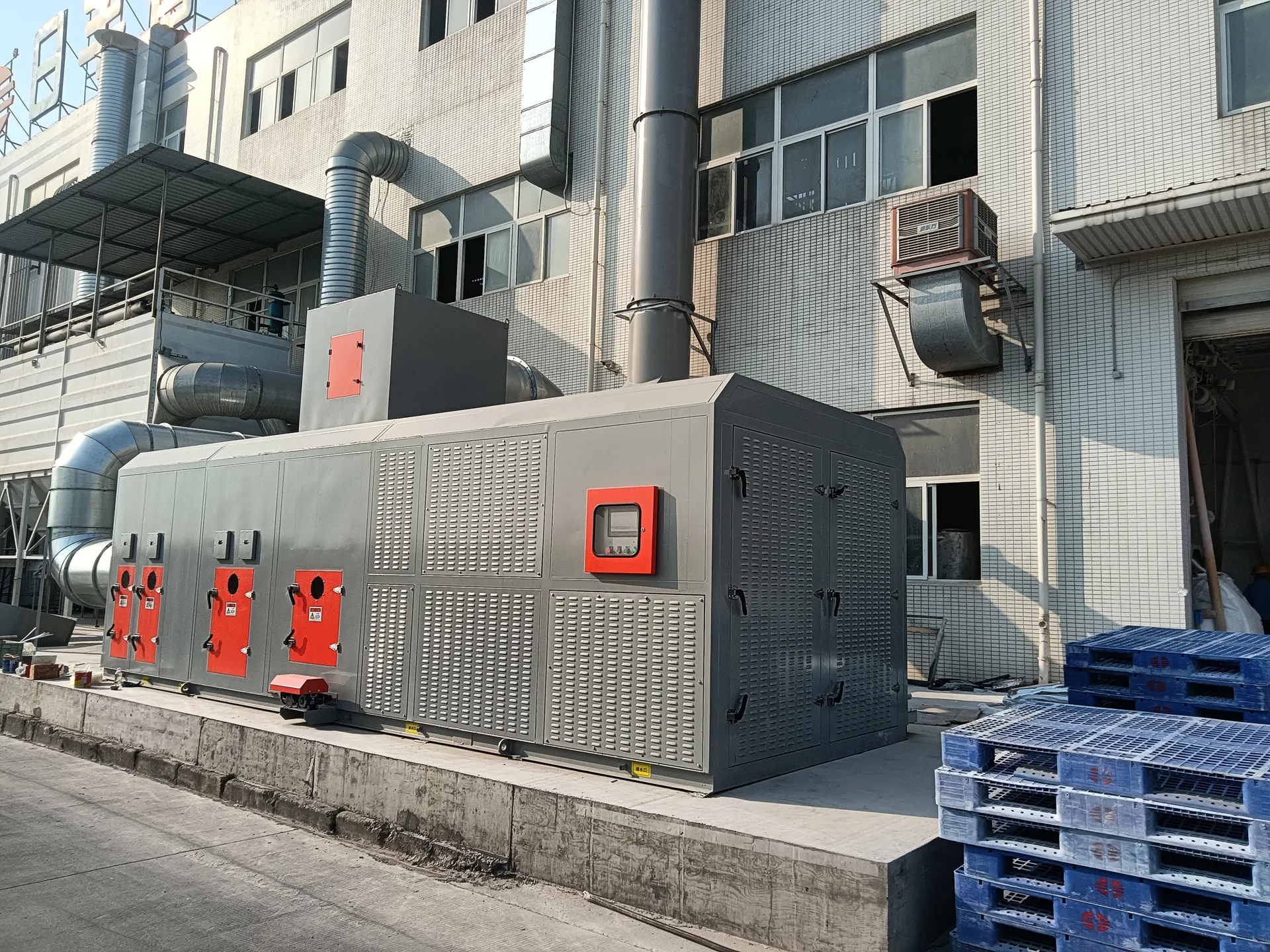

Real engineering project deployed by FluxFine Environmental.
Common pollutants
- NMP and process solvents
- Alcohols and esters
- Resin VOCs
- Mixed coating exhaust
- Odors
Typical conditions
- Capacity ramp-up
- Large low-concentration airflow
- Confidential formulations
- Continuous clean production
Engineering priorities
- Future capacity
- Solvent recovery value
- Clean-production interfaces
- Data confidentiality
- Controls integration
From collection to compliant discharge
- 01
Source capture
- 02
Filtration
- 03
Concentration or adsorption
- 04
RTO or catalytic oxidation
- 05
Energy integration
How we turn new materials & new energy exhaust data into a treatment train
The recommended configuration is built around the actual production process, not a generic industry label. This is especially important when one site has multiple exhaust headers, recipes or operating modes.
Common treatment challenges
- Fast-changing process chemistry
- Confidential production parameters
- High availability during capacity ramp-up
Data we request
- Exhaust source, airflow and operating schedule
- VOC/pollutant analysis, concentration range and LEL information
- Temperature, humidity, dust, mist and corrosive components
- Existing collection or pretreatment equipment
- Emission target, layout, utilities and shutdown constraints
Engineering decisions
- Whether streams should be segregated, balanced or treated together
- Which pretreatment protects downstream equipment
- Whether concentration, direct oxidation, recovery or polishing is appropriate
- Materials, safety interlocks, monitoring and maintenance access
- Where recovered heat or utilities can be integrated
Recommended path for new materials & new energy exhaust
This is a decision framework based on the supplied product and project material. The final train changes with measured chemistry, operating patterns and site constraints.
Common emission sources
- Battery/electrode manufacturing
- Functional-film coating and drying
- Resin/composite processing
- Advanced-material solvent and thermal-process exhaust
Source capture → dry filtration → concentration or direct RTO → heat integration
Large, continuous coating/drying exhaust often benefits from concentration assessment, while higher-load streams may favor direct RTO. Capacity ramp-up and confidential chemistry make flexibility essential.
- 01Protect confidential process data while defining gas characteristics
- 02Set collection and capacity margin for ramp-up
- 03Remove particulate and process contaminants
- 04Choose concentration or direct oxidation
- 05Integrate controls, heat use and expansion strategy
Solvent recovery
Consider where solvent value, purity and recycle route support recovery; otherwise destruction may be technically simpler.
Process-specific questions
How is future capacity handled?
Include growth assumptions early: header allowance, available pad space, fan/control capacity, utility margin and a staged equipment strategy.
Can confidential chemistry still be reviewed?
Yes. An NDA and controlled SDS/analytical-data exchange can provide the engineering inputs without publishing formulation details.
Documented new materials & new energy applications
Published records show the documented process context and treatment configuration. Airflow and concentration values, where shown, are project data rather than product guarantees.
High-Temperature Battery Hard Carbon Pyrolysis Off-Gas 3-Bed RTO & Jet Scrubbing Train
Caustic Rapid Quench Tower + Jet Mixing Two-Stage Tower + 3-Stage Dry Filtration (G4/F7/F9) + 850°C 3-Bed RTO + SNCR De-NOx + Tail WESP
30,000 m³/h Zeolite Concentrator & Three-Bed RTO for Polymer Film Printing & Coating Lines
3-Stage Dry Filtration Box + Zeolite Molecular Sieve Rotor + 15,000 m³/h Three-Bed RTO + 85°C Hot Water Heat Exchanger
700,000 m³/h Multi-Train VOCs & Fluoride Treatment System for NVT Technology Lithium Battery Plants
14-Train PP Alkali Scrubbing (5% NaOH) + Two-Stage Demisting + Cyclic Honeycomb Carbon Adsorption + Catalytic Oxidation (CO, 25:1 Ratio)
Battery Manufacturing VOC Treatment
Activated carbon concentration + three-bed RTO
New Material Production Three-Bed RTO
Three-bed RTO
Optical Film Coating Rotary RTO Project
Dry filtration + rotary RTO + heat recovery
Configurations commonly evaluated
These configurations are starting points for this industry. Final selection depends on measured airflow, pollutant chemistry, concentration, temperature and production schedule.
Three-Tower RTO
A premier-grade industrial VOC thermal abatement system that achieves >=99% VOC destruction efficiency and >=95% thermal energy recovery through a classic three-bed alternating heat-exchange and purge process.
View equipmentZeolite Rotor
A high-efficiency VOC pre-treatment and concentration system utilizing advanced hydrophobic zeolite molecular sieves to continuously adsorb, desorb, and enrich large-airflow, low-concentration organic exhaust gases, reducing downstream thermal destruction energy consumption by 40% to over 50%.
View equipmentRotor + 3-Tower RTO
The premier system for large-airflow, low-concentration VOC emissions, combining a hydrophobic zeolite rotor for 10-40x gas enrichment with a mature three-tower RTO for complete destructive oxidation, cutting energy costs by 40%-60%.
View equipmentRotor + Rotary RTO
The ultimate high-end VOC abatement configuration, marrying a hydrophobic zeolite rotor for 10-40x gas concentration with a valveless Rotary RTO for continuous, pulse-free, and highly energy-efficient thermal destruction (efficiency >= 99.8%).
View equipmentZeolite Rotor + CO
A modular, highly compact VOC abatement system integrating zeolite molecular sieve concentration with low-temperature catalytic oxidation (CO) at 250-350°C, delivering energy savings of up to 20%+ and zero fire risk for small-to-medium airflow setups.
View equipmentCompact Adsorption + CO
A compact adsorption-catalytic package for laboratories and smaller production lines with low-concentration VOC exhaust.
View equipmentMap your new materials & new energy process
Share exhaust sources, airflow, concentration, operating temperature and schedule. We will identify pretreatment needs and a suitable control train.
