30,000 m³/h Automotive Interior Trim Adhesive VOC Abatement System
Dongguan Hirotec / Guangze Automotive Trim Co., Ltd. | Robotic Spraying, Adhesive Wrapping & Curing Lines
Sticky Adhesive Mist & Multi-Booth VOCs Mastered by Coalescing Dry Filtration and Dual Carbon Beds
Dongguan Hirotec / Guangze Automotive Trim Co., Ltd. (founded in 1999) is an authoritative Tier-1 automotive component manufacturer specializing in precision automotive interior and exterior decorative assemblies. Operating advanced surface decoration and skin lamination technologies—including vacuum thermal transfer, robotic spray coating, electroplating, hot stamping, and adhesive film wrapping—the enterprise supplies premier international and domestic automotive OEMs including Toyota, Honda, Nissan, GAC, and leading EV brands.
At its Xitou manufacturing complex in Dongguan, the expansion of high-end door panel and instrument cluster wrapping lines introduced a challenging multi-point exhaust profile. The production process involves automated adhesive spraying followed by conveyorized tunnel oven curing, utilizing both solvent-borne and water-borne polyurethane formulations. The resulting exhaust stream of 30,000 m³/h (17,650 CFM) carried dilute volatile organic compounds (NMHC, esters, ketones) entrained with tacky, white fibrous adhesive flocculants prone to pipe clogging and premature adsorption bed blinding.
FluxFine designed and commissioned a complete turnkey exhaust capture and abatement system. The installation features custom aerodynamically balanced capture hoods across 5 spray booths and 5 curing ovens, an external quick-release coalescing dry filter box, dual-stage activated carbon adsorption vessels containing 8.64 m³ of high-iodine media (≥650 mg/g), a 30 kW VFD-governed centrifugal draft fan, and a 15-meter roof-elevated discharge stack. The system guarantees stack emissions of NMHC ≤ 20 mg/m³, eliminates duct fire hazards and sticky deposition, and achieves complete compliance with Guangdong DB44/2367-2022 and national GB 37824-2019 standards.
Quantified Performance & Operational Reliability
Rigorous process engineering guarantees uninterrupted automotive production, zero duct deposition, and full environmental compliance.
Integrated exhaust capture balancing 5 spray booths (17,550 m³/h) and 5 curing tunnel ovens (10,800 m³/h) with dedicated storage ventilation.
Surpasses the 60 mg/m³ ceiling of GB 37824-2019 and Guangdong DB44/2367-2022 standards by more than 66%, ensuring long-term audit certainty.
Dual heavy-gauge carbon adsorption vessels loaded with 4.32 m³ per vessel, maintaining laminar superficial velocity ≤ 1.2 m/s and residence ≥ 0.5s.
Coalescing dry filter box traps sticky white polyurethane adhesive particles down to 5 μm, completely preventing duct fire hazards and carbon blinding.
Engineered Multi-Stage Abatement Train
Systematic sequential treatment: aerodynamic booth capture, high-efficiency dry particulate separation, deep activated carbon adsorption, and roof-elevated dispersion.
Booth & Oven Hoods
5 spray booths (17,550 m³/h @ 0.5 m/s) and 5 curing ovens (10,800 m³/h @ 1.0 m/s) with spiral galvanized ducts DN250–DN900.
Coalescing Dry Filter
Multi-stage synthetic media box captures sticky white fibrous adhesive aerosols (>5 μm), isolating paint mist before draft fan entry.
Dual Carbon Vessels
Two parallel adsorption chambers containing 8.64 m³ high-iodine (≥650 mg/g) carbon. Face velocity ≤1.2 m/s, residence time ≥0.5s.
30 kW VFD & 15m Stack
Inovance VFD-modulated centrifugal fan inducing constant negative draft, venting compliant air 6m above the factory roof deck.
Mass Balance & Operational Parameter Train
| Process Stream / Unit | Design Airflow | Inlet Concentration | Destruction / Removal | Compliance Output |
|---|---|---|---|---|
| 5× Adhesive Spray Enclosures | 17,550 m³/h (10,330 CFM) | 10 – 25 mg/m³ (Adhesive Mist) | Capture > 95% at 0.5 m/s | Point-of-origin extraction |
| 5× Tunnel Curing Ovens (2 Long, 3 Short) | 10,800 m³/h (6,350 CFM) | 8 – 20 mg/m³ (Thermal Volatiles) | Overhead hood face 1.0 m/s | Zero shop vapor spill |
| Pretreatment Dry Coalescing Filter | 30,000 m³/h (17,650 CFM) | Fibrous Mist & Overspray | ≥ 98% Mist Separation (>5 μm) | Particulate ≤ 5 mg/m³ |
| Dual Activated Carbon Vessels (2 Units) | 30,000 m³/h (17,650 CFM) | Average 8 – 15 mg/m³ NMHC | ≥ 80% – 92% DRE Single-Pass | NMHC ≤ 20 mg/m³ (DB44/2367) |
| 15m Rooftop Emission Stack (+6m Deck) | 30,000 m³/h (17,650 CFM) | Purified Process Air | Atmospheric Dispersion Loop | Zero Boundary Odor |
Four Pillar Innovations in Automotive Adhesive Abatement
Heavy-gauge industrial engineering designed to solve severe flocculant fouling, multi-point duct pressure imbalance, and strict municipal boundary odor sensitivity.
Multi-Stage Coalescing Dry Filtration Eliminates Sticky Ductwork Coating
In automotive interior wrapping, solvent-borne and water-borne polyurethane adhesives atomized at the spray guns produce sticky, fibrous white aerosols that do not readily dry in air. When conveyed directly into exhaust piping, these tacky droplets coalesce along duct walls, creating severe combustible accumulation and blinding activated carbon micropores within weeks.

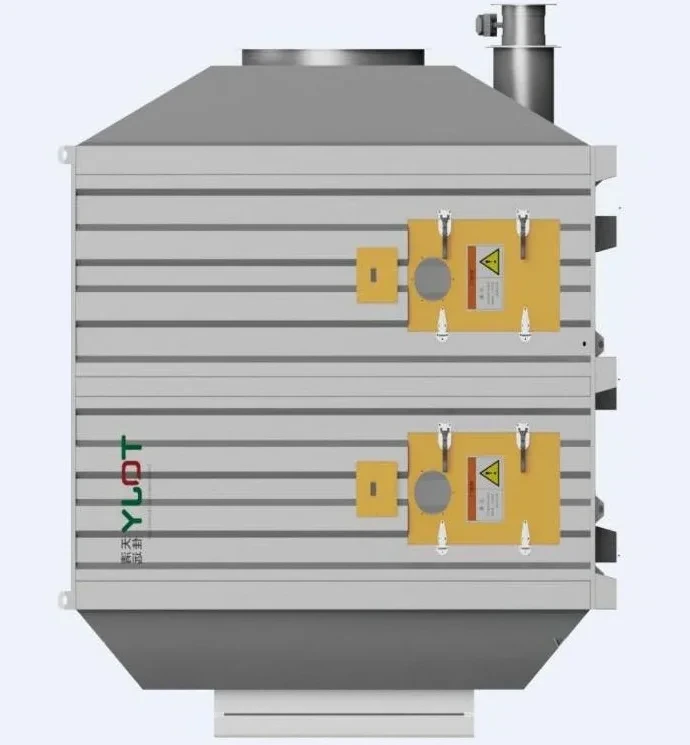

FluxFine engineered a high-capacity dry mist separation chamber positioned immediately downstream of the spray booth collection headers. Utilizing graduated synthetic coalescing filter panels housed in quick-release modular slide-out racks, the unit captures sticky fibrous aerosols down to 5 μm with an internal clean resistance of ≤350 Pa. Integrated differential pressure transmitters continuously monitor media saturation, signaling maintenance intervals before particulate breakthrough can reach the carbon adsorbers.
Dual-Vessel Carbon Architecture with Low Face Velocity (≤1.2 m/s)
Conventional single-box activated carbon adsorbers frequently suffer from air channeling, high superficial face velocities, and premature solvent breakthrough when subjected to turbulent factory airflow. Under Guangdong environmental guidelines, carbon adsorbers must guarantee sufficient gas-solid contact time and controlled bed resistance.

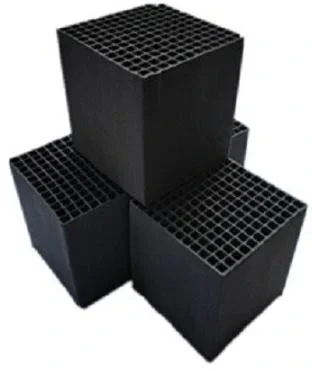

FluxFine deployed two heavy-gauge carbon adsorption vessels operating in parallel, loaded with a combined 8.64 m³ (4.32 m³ per vessel) of high-performance activated carbon with an iodine value ≥650 mg/g. By designing an expanded cross-sectional bed area, the superficial face velocity is tightly constrained to ≤1.2 m/s, yielding a bed contact residence time of ≥0.5 seconds. This kinetic configuration guarantees a single-pass VOC purification efficiency of ≥80% to 92%, suppressing stack NMHC concentrations below 20 mg/m³.
Precision Static-Pressure VFD Balancing Across 10 Process Stations
Exhaust extraction from 5 discrete spray booths (3,510 m³/h each @ 0.5 m/s face velocity) combined with 5 conveyorized curing ovens (2,160 m³/h each @ 1.0 m/s face velocity) creates severe ductwork static pressure imbalances. If unmanaged, pressure fluctuations cause solvent vapors to escape from inactive booths into the workshop breathing zone.

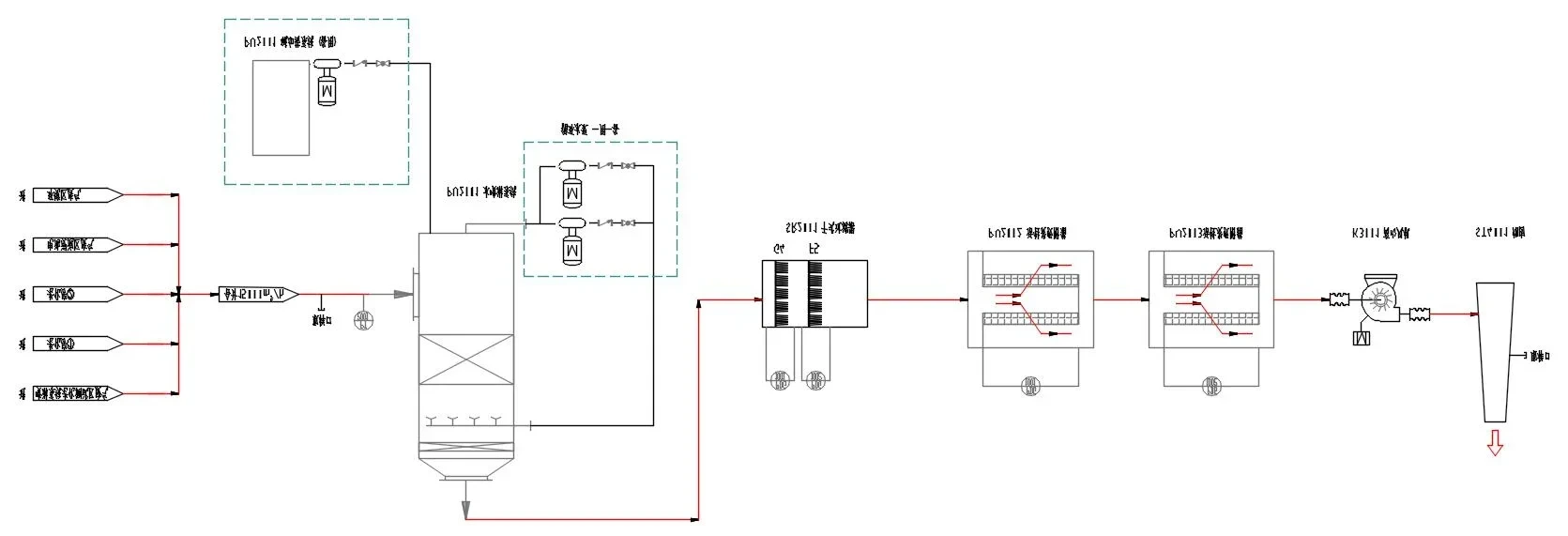

FluxFine designed an aerodynamically optimized spiral galvanized ductwork network ranging from DN250 to DN900 with graduated branch transitions and precision manual throttling dampers. The central 30 kW backward-curved centrifugal fan is governed by an Inovance variable frequency drive (VFD) linked to mainline static pressure transmitters. The control loop continuously modulates fan impeller speed to maintain steady negative draft across all operational hoods, reducing parasitic motor energy draw during shift changeovers while eliminating fugitive shop emissions.
15m Rooftop Stack Engineering Eliminates Urban Boundary Odor Sensitivity
The Guangze Xitou production complex is situated in an active industrial cluster near surrounding commercial facilities. While treated solvent levels easily meet concentration limits, volatile organic esters and ketones possess exceptionally low human odor detection thresholds. Low-altitude building downwash or roof turbulence can lead to lingering nuisance odors at the site perimeter.
FluxFine engineered a rigid 15-meter overall elevation discharge stack, projecting 6 meters above the highest factory rooftop parapet to surpass local wind wake zones. The stack is fabricated with high-velocity discharge cones to maximize thermal and aerodynamic plume rise, ensuring immediate atmospheric dispersion. Fully compliant with HJ/T 397-2007 and HJ 1405-2024, the stack includes a certified 1.5 m² sampling platform, safety ladder, and 1.2m OSHA-compliant safety handrails for seamless environmental auditing.
Four-Dimensional Technical & Operational Matrix
Verified physical boundaries, gas dynamics, compliance benchmarks, and mechanical specifications for the Guangze Automotive wrapping exhaust system.
1. Inlet Operating Envelope & Source Boundaries
| Parameter | Engineered Metric | US Imperial Equivalent | Engineering Rationale & Standard |
|---|---|---|---|
| Total Design Airflow | 30,000 m³/h | 17,650 CFM | Sized for 5 spray booths (17,550 m³/h) + 5 ovens (10,800 m³/h) + storage buffer |
| Inlet VOC Concentration | 8 – 25 mg/m³ | ~3.5 – 11.0 ppmv | Calculated from 40 kg/day adhesive usage across 16-hour operating schedule |
| Primary Chemical Species | NMHC, Butyl Acetate, Esters, Polyurethane Mist | Mixed organic solvent vapors | Solvent and water-borne PU adhesives used for leather & PVC trim wrapping |
| Gas Temperature & RH | 20°C – 35°C • RH ≤ 75% | 68°F – 95°F • Non-condensing | Maintained within optimum physical adsorption temperature window |
2. Guaranteed Environmental Compliance & Stack Emission Limits
| Pollutant Metric | Regulatory Benchmark | Guaranteed Stack Limit | Margin of Compliance |
|---|---|---|---|
| Non-Methane Hydrocarbons (NMHC) | ≤ 60 – 90 mg/m³ (DB44/2367-2022) | ≤ 20 mg/m³ | > 66% Lower than regulatory limit |
| Total VOC Purification DRE | ≥ 80% (HJ 2026-2013 Guideline) | ≥ 80% – 92% DRE | Fully compliant across operating lifecycle |
| Adhesive Mist / Particulates | ≤ 20 mg/m³ (GB 37824-2019) | ≤ 5 mg/m³ | 75% Below particulate ceiling |
| Perimeter Odor Concentration | ≤ 20 (Dimensionless, GB 14554-93) | ≤ 10 (Non-detectable) | Zero boundary odor complaints registered |
3. Adsorption Kinetics, Bed Aerodynamics & Media Lifecycle
| Parameter | Metric Specification | US Imperial Value | Engineering Significance |
|---|---|---|---|
| Carbon Volume per Vessel | 4.32 m³ / vessel (2 Units = 8.64 m³) | 152.5 cu.ft / vessel (305 cu.ft total) | Dual parallel vessels ensure balanced mass transfer zone |
| Superficial Face Velocity | ≤ 1.2 m/s | ≤ 236 ft/min | Prevents turbulent media bypass and carbon attrition |
| Contact Residence Time | ≥ 0.5 seconds | ≥ 0.5 seconds | Guarantees thorough intra-particle diffusion of solvent vapors |
| Total System Resistance | ≤ 1,200 Pa | ≤ 4.8 in. w.g. | Low backpressure minimizing electrical draft fan power |
| Regulatory Replacement Interval | 500 Operating Hours / 3 Months | Quarterly Changeout | Conforms to Dongguan Municipal VOC Adsorption Guidelines |
4. Mechanical Metallurgy, Electrical VFD & Safety Design
| Subsystem | Specification & Material | Instrumentation & Control | Safety Interlock Standard |
|---|---|---|---|
| Induced Draft Blower | Centrifugal draft fan, backward-inclined wheel, 30 kW motor | Inovance VFD with automated static pressure feedback loop | Motor thermal overload protection & anti-vibration spring isolators |
| Process Ductwork Network | Spiral galvanized steel (0.75mm wall, DN250 to DN900) | Manual branch balancing dampers with locking quadrants | Smooth interior seams minimizing dust and mist entrapment |
| Dry Mist Pre-Filter Housing | Galvanized structural casing, quick-release slide-out cassette frames | Magnehelic differential pressure gauge across media | High DP alarm at ≥350 Pa alerting operator for cassette swap |
| 15m Elevation Stack & Platform | Carbon steel structural chimney, 6m clearance above roof level | GB/T 16157 certified sampling ports and test tap | 1.5 m² inspection deck, 1.2m handrails, lightning ground loop |
